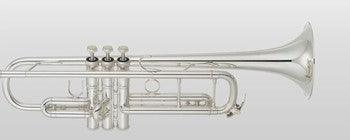

Yamaha YTR-9335CHS III Xeno Artist Chicago Bb Trumpet

Valve Casing

Based on new findings acquired through research into vintage trumpets, the dimensions and thickness of parts of the valve casing have been revised for the 2019 model. The refined valve casing and lightweight pistons work together to deliver significantly improved response for even greater clarity in detailed passages.

Main Tuning Slide and Water Key Cork

For the 2019 model revision, a square main tuning slide that provides enhanced overall playing feel and tonal balance has been adopted in the YTR-9335CHS and YTR-9445CHS. A new rubber cork material* that is more resistant to deterioration over time is used for the water key seal. These modifications contribute to improved definition, projection, and response.

* Rubber cork: Cork particles are evenly distributed through a synthetic rubber, achieving greater compression resilience than conventional cork.

Bell Design

The bell features a design that is narrower toward the valve casing, and a square-cornered bell bow that provides the performer with a more balanced resistance. This results in a more "three-dimensional" sound, with a strong tonal core that improves upper register playability.

French Bead　

Unlike traditional methods where a round rim curl is used, a French bead is an advanced technique that matches the curl to the shape of a semi-cylindrical rim and is characterized by improved feedback of sound to the performer.

Leadpipe

Utilizing a leadpipe that is thicker than current designs, an original style Malone Pipe™ (MB1), and a lighter mouthpiece receiver, tone and response have been improved while providing the performer with ideal blowing resistance. You will hear and feel the difference in tone quality and response.

Malone Pipe™

Based on leadpipes designed by renowned brass instrument artisan Bob Malone, the Malone Pipe™ is available in several keys, offering quick response, superior intonation and unparalleled evenness of tone. Originally a trumpet player himself, Bob Malone opened his own custom brass shop in Los Angeles in 1983. Trumpeters flocked to his shop to have him personally customize their horns. His original leadpipe design has enjoyed wide acclaim and is still held in high regard among trumpet players. Since Bob joined Yamaha’s Research and Development team in 2001, his Malone Pipe™ design has made its way into a number of Xeno Artist models and Custom series instruments. Rich and brilliant tone with excellent projection, the Malone Pipe™ brings total expression to your music.

Water Key

The Xeno Artist Model trumpet water key contributes to resonance in a significant way. The weight distribution of the water key arm and saddle improve playability and response while enhancing high resister accessibility.

Brace Design & Position

The design of the bell braces achieves quick response with a brilliant, well-centered tone. Although the position of the YTR-9335CHS tuning slide brace is unique for a Bb instrument, the distance between the mouthpiece receiver and tuning slide brace on the YTR-9335CHS and YTR-9445CHS are similar when the slide is extended for tuning, so that consistent playability is achieved when switching between Bb and C trumpets.

1st Valve Slide

The first valve side has a special brace for a stronger focus to the core of the tone, resulting in unparalleled definition and clarity.

3rd Valve Slide

The 3rd valve slide stopper is positioned to allow the slide to be extended further than normal so that accurate low Eb pitch can be achieved. The button at the tip of the slide and the quarter circle stopper ring help to fine-tune the playing resistance for superior comfort and playability.

Slide Stopper

The slide stopper is designed to prevent the first and third valve slides from falling off. The slide stopper is made of silicone rubber that will not harm the finish. Providing both strength and elasticity, it can remain attached to the instrument during performance. (Length: 12 cm)
